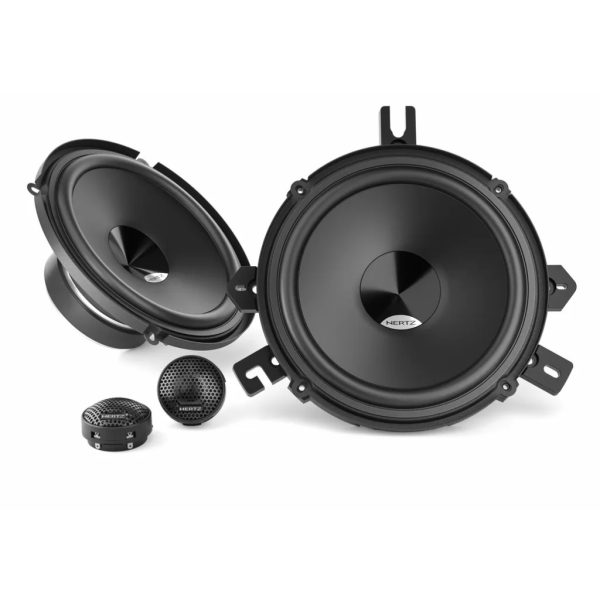

Hertz Dieci Series DSK 160.3 – KIT 2Way 160mm

Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity.

Dieci car audio systems let you realize a high quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.

V-cone®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Technical Specs

Component:

Two way system

Size mm (in.):

165 (6.5)

Power Handling – Continuous W:

80

Power Handling – Peak W:

160

Impedance Ohm:

4

Woofer Voice Coil Ø mm (in.):

25 (1)

Sensitivity dB SPL 93

Frequency Response Hz:

50 ÷ 23k

Crossover Cut off :

3,5 kHz @ 12 dB Oct.

Crossover Type:

Hi Pass

Weight of one component – Woofer:

0,74 (1.63)

Weight of one component – Tweeter kg (lb):

0,03 (0.07)

Weight of one component – Crossover kg (lb):

0,16 (0.35)
