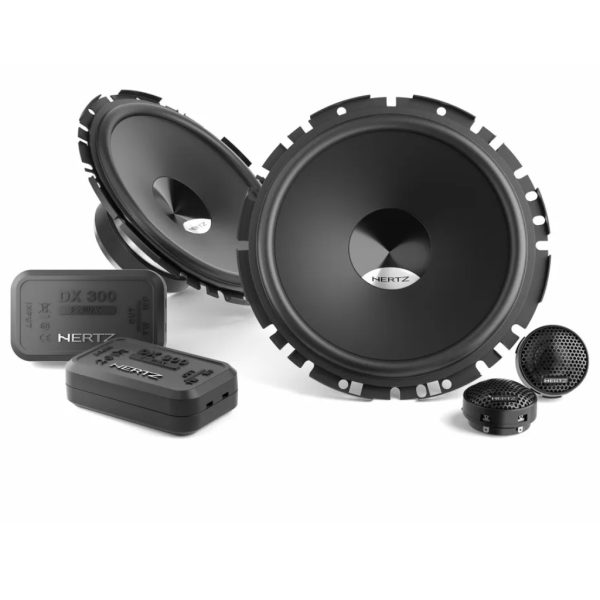

Hertz Dieci Series DSK170.30 6.7inch 160W 2 Way System

Hertz DSK 170.3 Dieci series car audio systems let you realize a high-quality audio system with the utmost in simplicity

Hertz DSK 170.3 Dieci series car audio systems let you realize a high-quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high-frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.

V-cone®

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Technical Specs

Component:

Two way system

Size mm (in.):

170 (6.7)

Power Handling – Continuous W:

80

Power Handling – Peak W:

160

Impedance Ohm:

4

Woofer Voice Coil Ø mm (in.):

25 (1.0)

Sensitivity dB SPL 93

Frequency Response Hz:

50 ÷ 23k

Crossover Cut off:

3,5 kHz @ 12 dB Oct.

Crossover Type:

Hi Pass

Weight of one component – Woofer :

0,53 (1.17)

Weight of one component – Tweeter kg (lb):

0,03 (0.07)

Weight of one component – Crossover kg (lb):

0,16 (0.35)

Electro-acoustic Specs

D mm:133

Re Ohm:3,6

Fs Hz:79

Le mH:0,26

Vas I:11,3

Mms g:10

Cms mm/N:0,4

BL T*m:3,9

Qts:0,96

Qes:1,15

Qms:5,78

Spl dB:93
