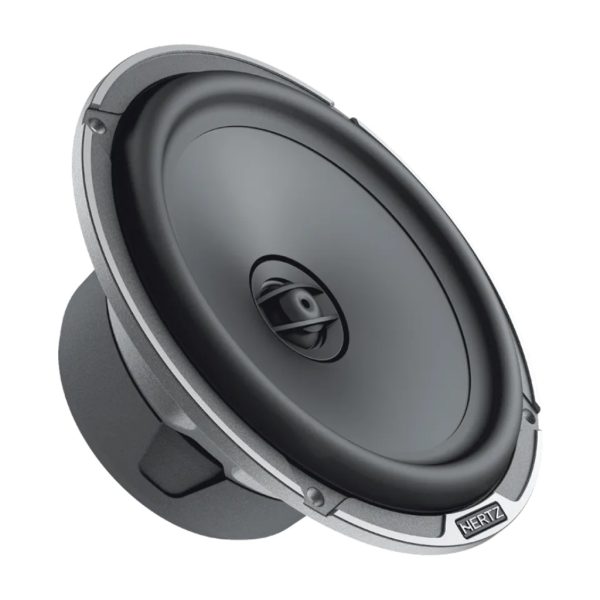

Hertz Mille Pro MPX 165.3 Pro 6.5inch Coaxial Speaker

TWEETER SUPPORT WORKING AS A REAR CHAMBER: sized for low Fs, to ensure a well damped high pass frequency roll-off, allowing low cut-off frequency crossover point.

PRESSED-PULP CONE WITH COTTON FIBERS: combining stiffness and lightweight for a wide frequency response. Cone profile geometrically refined to perfectly match with the tweeter emission ensuring phase consistency in the crossover area.

“BOUNDARY FREE” RUBBER SURROUND: for improved efficiency and wider midbass frequency. (Logo Boundary Free)

OVER-SIZED FERRITE MAGNET: combined with very low carbon content iron plates, for low distortion at high power levels.

BASKET: low mounting depth, acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.

Component:

Coaxials

Size mm (in.):

165 (6.5)

Power Handling – Continuous W:

100

Power Handling – Peak W:

200

Impedance Ohm:

4

Woofer Voice Coil Ø mm (in.):

36 (1.42)

Tweeter Voice Coil Ø mm (in.):

20 (0.8)

Frequency Response Hz:

45 ÷ 21,5k

Woofer Magnet size D x d x h mm (in.):

90 x 45 x 17 (3.54 x 1.77 x 0.67)

Tweeter Magnet size D x h mm (in.):

29.5 x 22 x 4 (1.16 x 0.87 x 0.16)

Weight of one speaker kg (lb.):

1.27 (2.8)

Woofer Magnet:

High density flux ferrite

Tweeter Magnet:

Neodymium

Cone:

Pressed-pulp cone with cotton fibers

Dome:

Tetolon

Xmech mm (in.):

±6 (0.24)

Electro-acoustics Specs

D mm:132

Re Ohm:3,1

Fs Hz:90

Le mH:0,01

Vas I:4

Mms g:18,9

Cms mm/N:0,15

BL T*m:5,8

Qts:0,88

Qes:1,06

Qms:5,5

Spl dB:92
